Horizontal Remote Radiator
Description

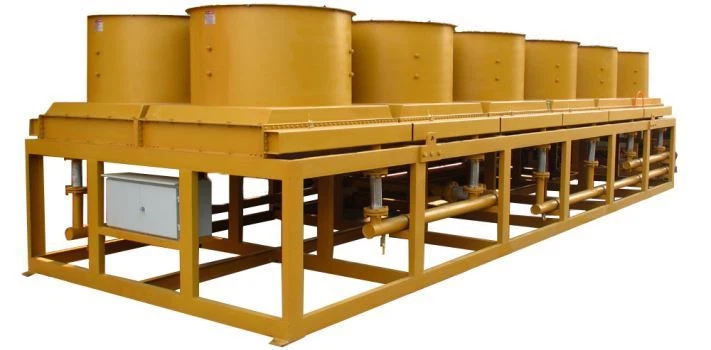

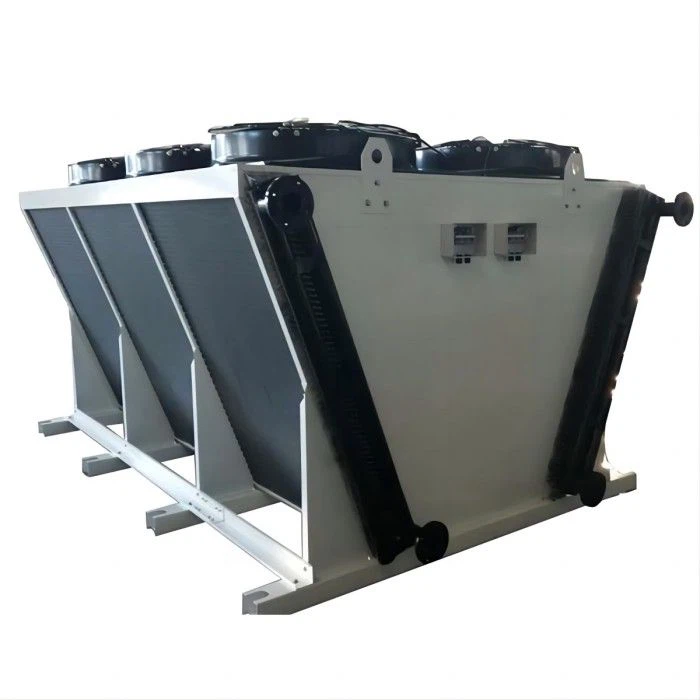

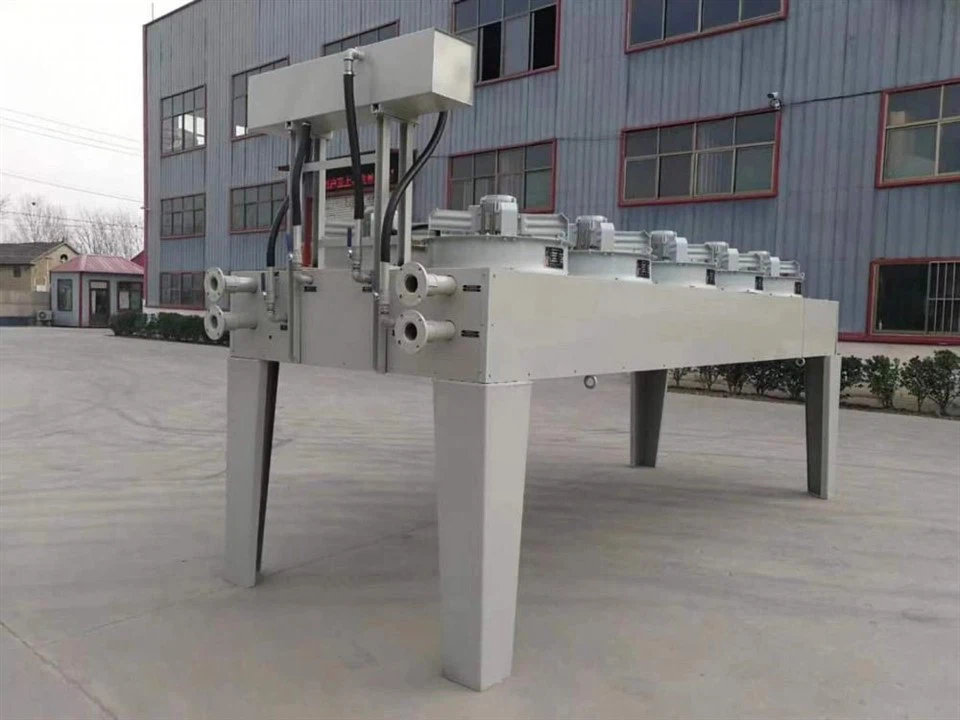

Horizontal Remote Radiator is a remote cooling device designed for industrial equipment and high-load equipment. It mainly uses strong airflow to quickly remove the heat generated by the equipment during operation. Its working principle is based on air flow and heat exchange, and adopts a horizontal layout. The product consists of a high-efficiency fan, fan blades, transmission system and electrical control parts, which can maintain stable operation of the equipment under high temperature conditions through optimized airflow paths.
Features
Efficient heat dissipation performance
Horizontal Remote Radiator adopts an optimized fan design, with a blowing/suction volume of 17560 m³/h and efficient airflow transmission capacity. Strong airflow allows heat to be quickly removed, ensuring that the equipment can maintain a low temperature during operation and avoiding overheating that affects the long-term stable operation of the equipment. Combined with the product's flow coefficient (0.21) and pressure coefficient (0.070), the product can provide ideal heat dissipation in actual applications, ensuring that the temperature of the working environment is always in the ideal range.
Energy saving and high efficiency
The motor power of this product is 3kW, the operating voltage is 380V, and the motor speed is 1450r/min. In this configuration, the fan can provide strong and stable airflow while reducing energy waste. By using efficient motors and optimized aerodynamic design, the Horizontal Remote Radiator has an air efficiency of 0.66, which can produce more heat dissipation per unit power. Using this product can effectively reduce power consumption and reduce operating costs, especially for high-load equipment that needs to run continuously for a long time.
Low-noise operation
The motor noise of the product is strictly controlled within 78 decibels, which enables the Horizontal Remote Radiator to operate stably in a working environment with high noise requirements. Through reasonable fan structure and noise isolation design, the noise level can be maintained at a low level even with large air volume. This is especially important for applications that require a quiet environment, such as data centers, laboratories, and offices.
Stable wind pressure and airflow control
The product has a full pressure of 228Pa, has a strong wind pressure capacity, and can operate stably in a high-resistance environment. Its pressure coefficient is 0.070, which ensures that even in the case of long ducts or multiple ducts, the airflow can still be evenly and stably distributed, thereby improving the cooling effect. Whether in complex industrial facilities or equipment-intensive environments, the Horizontal Remote Radiator can meet the high requirements for air flow.
Main technical parameters of external horizontal radiator:
The fan is required to use a waterproof and explosion-proof motor with the following parameters:
|
Motor power |
3kW |
|
Motor voltage |
380V |
|
Motor speed |
1450r/min Flow coefficient: 0.21 |
|
Blade angle |
20° |
|
Blowing/suction volume (flow) |
17560 m2/h |
|
Pressure coefficient |
0.070 Full pressure |
|
228Pa |
|
|
Air efficiency |
0.66 |
|
Used shaft power |
1.67 |
|
Motor noise |
≤78 decibels |
|
Fan blades |
600mm diameter, made of fiberglass, 10 pieces/piece |
|
Electrical control |
Manual: The total power supply is controlled by an 80A three-phase four-wire leakage protector, and a single machine uses a 20A circuit breaker. |
FAQ
Q: What is the main purpose of the Horizontal Remote Radiator?

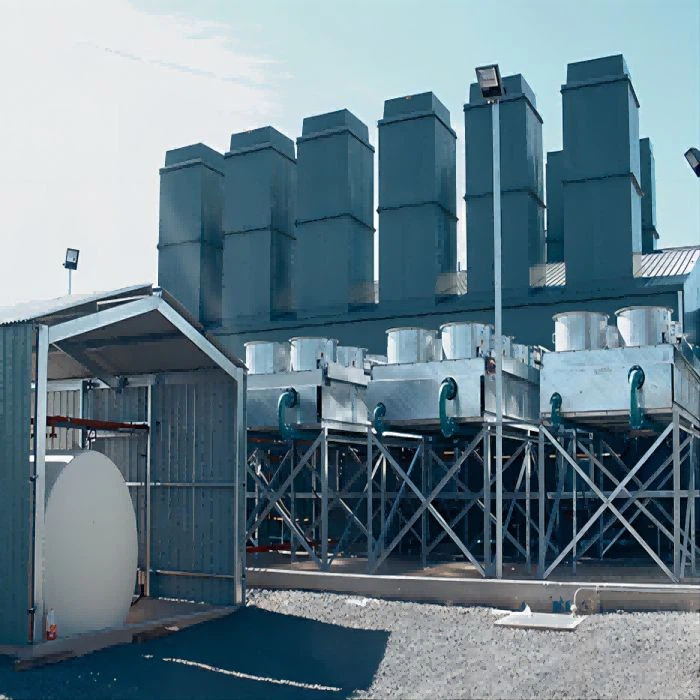

A: The Horizontal Remote Radiator is mainly used for heat dissipation of industrial equipment and high-load equipment. It is suitable for data centers, generator sets, air conditioning systems and other places that require long-term stable operation. It quickly removes the heat generated by the equipment through strong airflow to maintain the normal temperature of the equipment.
Q: What industries is this radiator suitable for?
A: The Horizontal Remote Radiator can be widely used in many industries such as electricity, chemical industry, metallurgy, petroleum, electronic manufacturing, data centers, etc., especially for applications with high temperature control requirements and large equipment loads.
Q: What is the motor power and voltage of this product?
A: The Horizontal Remote Radiator is equipped with a 3kW motor and an operating voltage of 380V, which can provide sufficient power to support strong airflow and meet the heat dissipation needs of most high-load equipment.
Q: What is the fan speed of the product?
A: The motor speed of this product is 1450r/min. This speed can ensure stable and low-noise operation of the equipment while providing sufficient air volume.
Q: What is the maximum air volume and air pressure of the product?
A: The maximum air volume of the Horizontal Remote Radiator is 17560 m³/h, the pressure coefficient is 0.070, and the maximum air pressure is 228Pa. This air pressure value can provide stable airflow in a high resistance environment to ensure efficient heat dissipation.
Q: How high is the air efficiency of this product?
A: The air efficiency of this product is 0.66, which means that it can provide relatively high heat dissipation per unit power. Higher air efficiency can improve the overall energy efficiency of the system and reduce long-term operating costs.
Q: What is the noise level when using this product?
A: The motor noise of the Horizontal Remote Radiator is controlled at ≤78 decibels. When running at a large air volume, it can still maintain a low noise level, which is suitable for places requiring a quiet environment, such as data centers and offices.
Q: What is the material and size of the fan blades?
A: The product uses a fan blade with a diameter of 600mm, made of high-strength glass fiber. Glass fiber has extremely high corrosion resistance, wear resistance and high temperature tolerance, which can extend the service life of the equipment.
Q: What is the control system of the product?
A: The Horizontal Remote Radiator is equipped with a manual control system and uses an 80A three-phase four-wire leakage protector to ensure the safety of the electrical system. Each unit is also equipped with a 20A circuit breaker to effectively prevent overload and short-circuit faults.
Q: Is the product designed for easy installation and maintenance?
A: The compact design of the radiator takes up little space, making it suitable for installation in space-constrained environments. The modular design of the unit makes it easy to replace and maintain the fan and motor, reducing downtime and maintenance costs.
Q: Can the product work properly in high-temperature environments?
A: The Horizontal Remote Radiator is designed for high-load environments and can operate stably and long-term under high-temperature conditions. The fan's wind pressure and air volume design ensure that even in high-temperature and long-term operation environments, it can still effectively dissipate heat and prevent the equipment from overheating.
Q: Does the product meet energy efficiency requirements?
A: The Horizontal Remote Radiator has high air efficiency and low shaft power (only 1.67kW). It can provide efficient heat dissipation at low energy consumption, making it an ideal choice for energy-saving equipment.
Q: What is the service life of the product?
A: Due to the use of high-durability fiberglass fan blades and high-quality motor components, the Horizontal Remote Radiator has a long service life and can withstand long-term high-load operation, reducing the frequency of replacement and repair.
Q: Is the product suitable for outdoor use?
A: The Horizontal Remote Radiator is designed for use in a variety of industrial environments, including outdoor use. Its anti-corrosion design and high temperature resistance enable it to work properly in harsh climate conditions, but it is necessary to ensure that the electrical part of the equipment is well protected to prevent it from being affected by bad weather.
Q: Is customization service available?
A: According to customer needs, the Horizontal Remote Radiator can provide customized services, including fan size, voltage requirements, noise control level, etc. Customers can communicate with the manufacturer based on specific application scenarios and heat dissipation requirements to obtain tailored product solutions.
