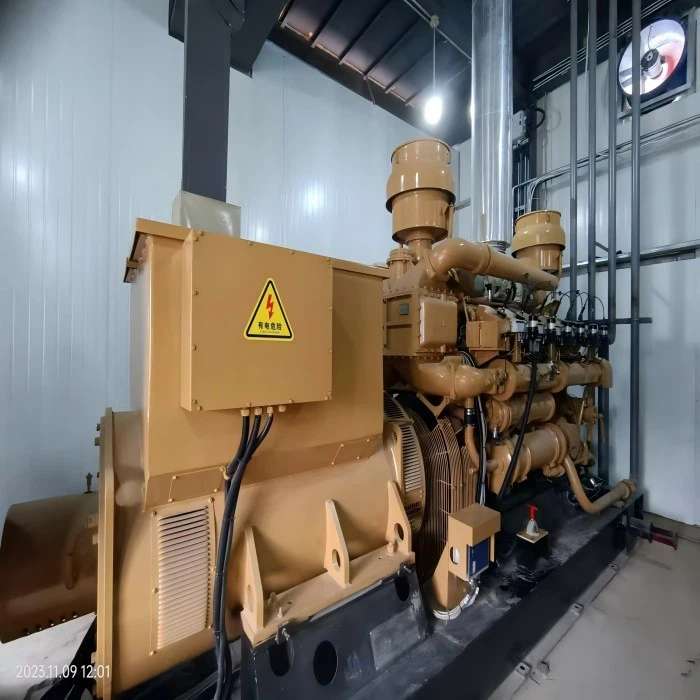

500KW Biogas Generator Set
500KW Biogas Generator Set meets the general technical requirements of gas fuel generator sets. It adopts "Jichai" 2000 series gas engine, equipped with intelligent gas control system, using closed-loop electronic control and lean combustion technology, which can realize automatic adjustment of air-fuel ratio under different working conditions. The performance of gas engine ranks among the leading domestic levels; the unit is equipped with Siemens technology series brushless excitation, automatic voltage regulation high-performance generator.
500KW Biogas Generator Set parameter：
|
Model of Generating Set |
500GF-Z |
|
Model of engine |
G12V190ZLDZ-2 |
|
Alternator model |
1FC series, Siemens technology, brushless excitation, automatic voltage control |
|
Cylinder quantity & arrangement |
12 Cylinders with V type |
|
Rated power(KW/KVA) |
500KW /625KVA |
|
Rated speed(r/min) |
1000rpm |
|
Rated voltage(V) |
400V/230V |
|
Rated current(A) |
902A |
|
Rated frequency(Hz) |
50Hz |
|
Rated power factor |
0.8 |
|
Supply method |
3-phases 4-lines |
|
Excitation method |
Brushless |
|
Starting method |
Electric motor |
|
Cooling method |
Half opened water cooling system |
|
Bore(mm)&Stroke(mm) |
190mm,210mm |
|
Speed modulate method |
Electronic control |
|
Net weight (kg) |
11800kg |
|
Reference Overall dimension |
5120x2040x2780mm |
Features of 500KW Biogas Generator Set closed-loop electronically controlled external mixing biogas generator:
Pre-supercharger mixing technology, gas and air are sucked in at the same time in the compressor, suitable for low-pressure gas.
Use the control system to accurately control the air-fuel ratio to achieve a high air-fuel ratio and realize lean combustion.
Single-point injection of gas and air-fuel ratio closed-loop control technology to achieve closed-loop control of air-fuel ratio (λ). The engine can automatically adjust the amount of air and gas in a timely manner according to different working conditions and different speed requirements, so that the engine can run in the best state.
The efficient and reliable intake and exhaust system design uses advanced high-pressure ratio and large-flow superchargers to increase the flow area of the intake pipe and improve the intake efficiency. The high-efficiency and low-resistance intercooler and plate oil cooler with German technology are used to improve the cooling efficiency and increase the cooling area of air and lubricating oil.
The high-energy and high-reliability MIC-500 ignition system is selected to make the combustion of each cylinder of the engine more stable and uniform.
Users with gas resources should first conduct necessary analysis on the gas composition and content, calculate the gas calorific value, and provide it to the relevant technical department of Jichai. According to the internal power load, gas production, water quality conditions, etc. of the enterprise, the unit power, number of units and cooling water circulation method can be determined. Depending on the different gas, the power generation and gas consumption are also different.
