Hey there! As a supplier of diesel generator sets, I often get asked about how to test the output voltage of these machines. It's a crucial step to ensure that the generator is working properly and providing the right amount of power. In this blog post, I'll walk you through the process of testing the output voltage of a diesel generator set.
Why Testing Output Voltage Matters
Before we dive into the testing process, let's talk about why it's so important to test the output voltage. The output voltage of a diesel generator set determines the amount of electrical power it can supply to connected devices. If the voltage is too high or too low, it can cause damage to the equipment or lead to inefficient operation. By regularly testing the output voltage, you can catch any issues early and prevent costly repairs or downtime.
Tools You'll Need
To test the output voltage of a diesel generator set, you'll need a few basic tools:
- Multimeter: This is the most important tool for testing voltage. Make sure you have a multimeter that can measure AC voltage.
- Safety Gear: Safety should always be your top priority when working with electrical equipment. Wear insulated gloves and safety glasses to protect yourself from electrical shocks.
- Generator Manual: The generator manual will provide you with specific instructions on how to test the output voltage and the acceptable voltage range for your generator.
Step-by-Step Guide to Testing Output Voltage
Now that you have your tools ready, let's get started with the testing process.
- Prepare the Generator: Before you start testing, make sure the generator is in a safe and stable location. Turn off all connected devices and let the generator run for a few minutes to warm up.
- Set Up the Multimeter: Set your multimeter to the AC voltage setting. The voltage range should be set to a value higher than the expected output voltage of your generator. For most diesel generator sets, a range of 200 - 600V should be sufficient.
- Locate the Output Terminals: The output terminals are usually located on the control panel of the generator. They are labeled as "L1," "L2," and "N" for single-phase generators, or "L1," "L2," "L3," and "N" for three-phase generators.
- Connect the Multimeter: Carefully connect the probes of the multimeter to the output terminals. For single-phase generators, connect one probe to "L1" and the other to "N." For three-phase generators, you can test each phase separately by connecting one probe to each phase terminal ("L1," "L2," "L3") and the other to "N."
- Read the Voltage: Once the multimeter is connected, read the voltage displayed on the screen. Compare the reading to the acceptable voltage range specified in the generator manual. If the voltage is within the range, the generator is operating normally. If the voltage is too high or too low, there may be an issue with the generator that needs to be addressed.
- Test Multiple Points: To ensure accurate results, it's a good idea to test the voltage at multiple points on the output terminals. This will help you identify any potential issues with the wiring or connections.
- Record the Results: Keep a record of the voltage readings for future reference. This will help you track the performance of your generator over time and identify any trends or changes.
Common Issues and Troubleshooting
If you find that the output voltage of your diesel generator set is outside the acceptable range, there may be a few common issues that you can troubleshoot.
- Loose Connections: Check all the connections on the output terminals and the control panel to make sure they are tight. Loose connections can cause voltage drops and lead to inaccurate readings.
- Faulty Voltage Regulator: The voltage regulator is responsible for maintaining a stable output voltage. If the voltage regulator is faulty, it may need to be replaced.
- Overloading: If the generator is overloaded, it may not be able to produce the required voltage. Make sure you are not exceeding the rated capacity of the generator.
- Engine Issues: Problems with the engine, such as low fuel levels or a clogged air filter, can also affect the output voltage. Check the engine and address any issues as needed.
Conclusion
Testing the output voltage of a diesel generator set is a simple but important process that can help you ensure the proper operation of your generator and protect your equipment from damage. By following the steps outlined in this blog post and using the right tools, you can easily test the output voltage of your generator and identify any potential issues.

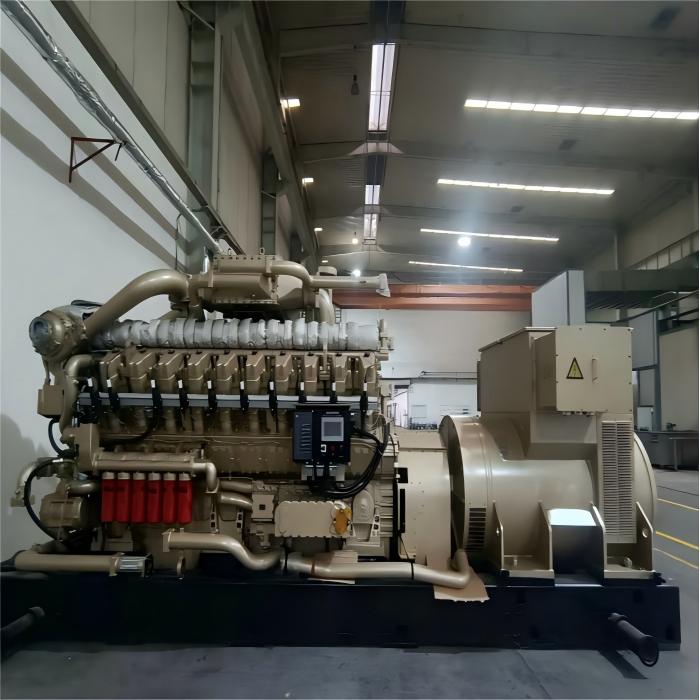

If you're in the market for a new diesel generator set, we offer a wide range of high-quality options, including Containerized Diesel Generator Set, 2000KW Diesel Engine Generating, and 1500KW Diesel Engine Generating. Our generators are designed to provide reliable power and are backed by our excellent customer service.
If you have any questions or would like to discuss your power needs, please don't hesitate to reach out. We're here to help you find the perfect generator for your requirements.
